Base Screw Jack

Engineered for Safety

All products are manufactured to meet global safety and quality standards, ensuring reliable performance at any construction site.
Custom Fit Solutions

Available in a variety of sizes and configurations to suit different project requirements across industries.
Durability & Strength

Built from high-grade materials for excellent load-bearing capacity and long-term use under tough site conditions.

Inquiry Now

Detailed Product Description

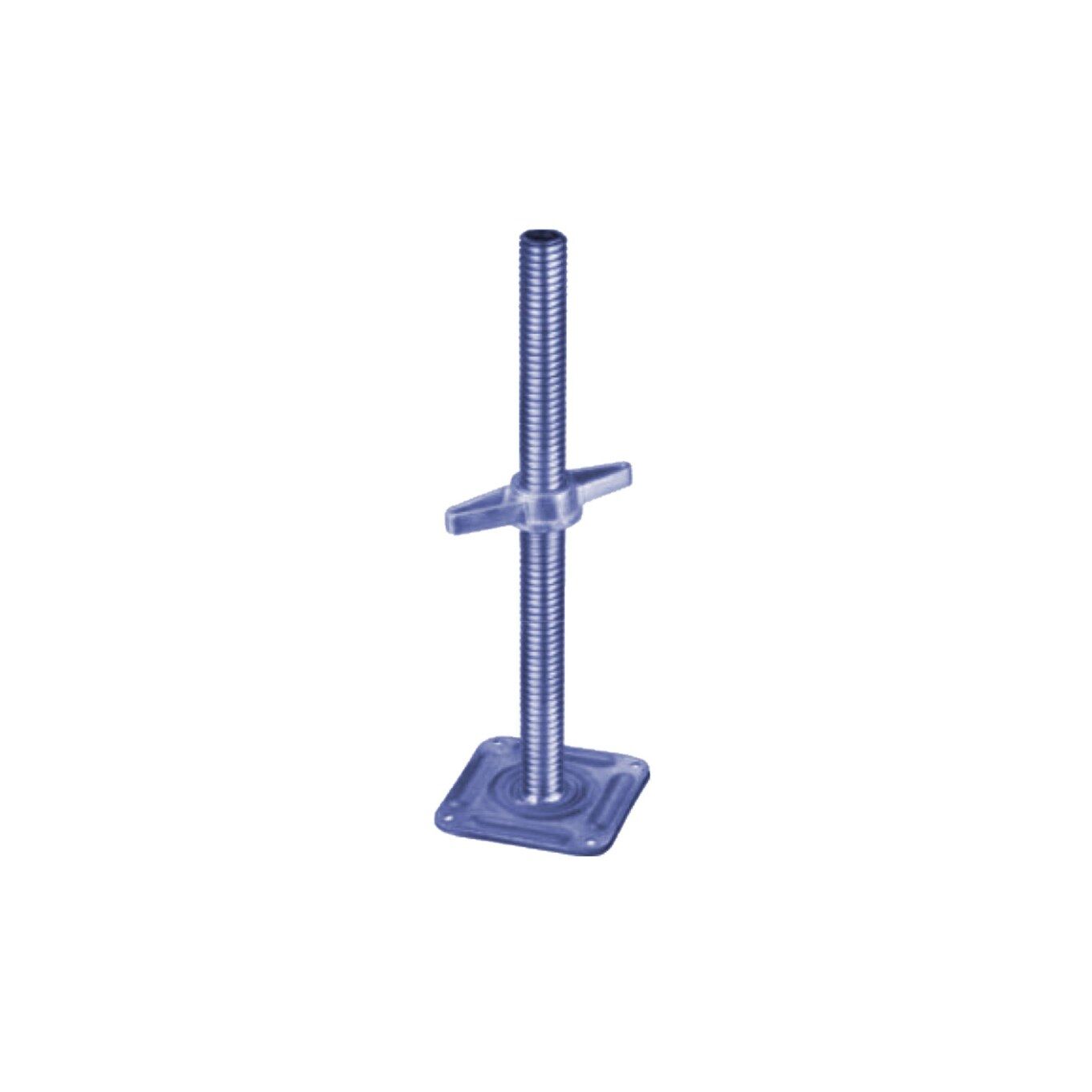

Adjustable Base Screw Jack is used as a starting base for a scaffolding System. It has an adjustable height to allow for compensation on uneven levels for sustaining the stability.

Construction features:
Solid or tubular (Seamless or welded tube) available in Q195B / Q235B
Reinforced formation Plate to give more stability
Forged or SG Wing Nuts as per the request.
There is a Notch/Cut in the threads of the tube 150 mm from the top, to prevent the Nut from coming off, and to keep the Screw Jack from being over-extended
Available in different design to give swivel, formwork beam solutions
Maximum load of 75 kN with a max grid spacing of 2.4m x 2.4m. Testing Reports can be provided with each lot
Customization available.

Available : Solid, Hollow Tube
Nut : Forging/ SG Iron
Threads : Round, Square ACME
Surface Finish : Electro Galvanized, Hot Dip Galvanized, Customization Available.
OD : Ø32 to Ø48 mm
Length 250 to 750 mm
