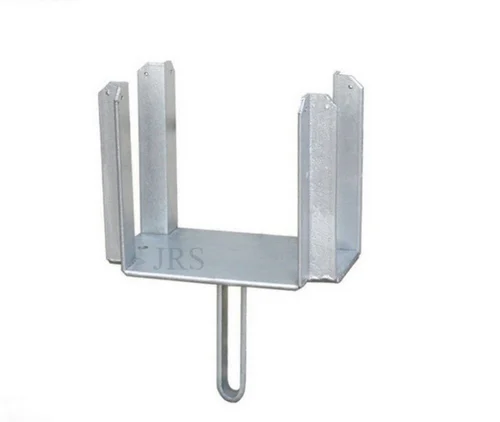

Four Way Head Screw Jack/U-Head Jack Scaffolding Parts

Four way head screw jack is used to support the steel or timber on the top of the scaffold. The thread along with the jack is cold formed which can supply high loading capacity.

Material
Carbon Steel
Material Grade
S235
Surface Treatment
Zinc Plating
Diameter
32,34and 38mm
  • Lot number, month and year stamp
  • Hologram on every product
  • Made to your specification

Specifications

Is It AdjustableNon Adjustable
Jack ShapeFour Way Head
MaterialCarbon Steel
Surface TypeHot Dipped Galvanized
Usage/ApplicationTo support beam or timber
ColorSilver
Diameter32,34and 38mm
Material GradeS235
Product TypeScaffolding Screw Jack
Surface TreatmentZinc Plating
Packaging TypeSteel Pallet
Outer Tube Diameter32,34and 38mm
Surface FinishSilver Zinc Plating
Scaffolding TypeSupporting
ShapeFour Way Head

Description

Four way head screw jack is used to support the steel or timber on the top of the scaffold. The thread along with the jack is cold formed which can supply high loading capacity.

Uses :

  • To support scaffold structure
  • Safe & reliable adjustment of height
  • Lock nut for adjustment
  • Can be used with different pads

Product Features:

  • Malleable and ductile
  • Excellent Durability
  • Rust free
  • Dimensionally stable

Product Specifications:

  • Tube Length :450, 500, 610, 700
  • Size (mm) :32 , 34, 38
  • Plate :150 X 150 X 5
  • Nut :Casted, Forged
  • Thread :4TPI
  • Item Code: EFC-6005-21
  • Production Capacity: 20000 piece per month
  • Packaging Details: Packing in Steel Pallet or As per Customer Requirement

Questions

About this product

Can Four Way Head Screw Jack/U-Head Jack Scaffolding Parts be made to my drawing?

Yes. We make to your exact specification. Send your drawing or sizes and we confirm what we can make.

How can I trace Four Way Head Screw Jack/U-Head Jack Scaffolding Parts?

Each product carries a lot number, a month and year stamp and a hologram.

What should I send for a quote on Four Way Head Screw Jack/U-Head Jack Scaffolding Parts?

Send the sizes or a drawing, the finish you need, the quantity and your destination port. Quantities and delivery are confirmed in your quote.
