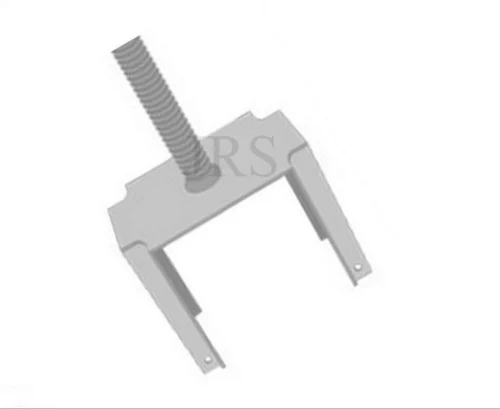

Four Way Head Screw Jack (S235)
Four way head screw jack is used to support the steel or timber on the top of the scaffold. The thread along with the jack is cold formed which can supply high loading capacity.
- Material
- Carbon Steel
- Material Grade
- S235
- Surface Treatment
- Zinc Plating
- Diameter
- 32,34 and 38mm
- Brand
- JRS
- Lot number, month and year stamp
- Hologram on every product
- Made to your specification
Specifications
| Is It Adjustable | Non Adjustable |
|---|---|
| Jack Shape | Four Way Head |
| Material | Carbon Steel |
| Surface Type | Hot Dipped Galvanized |
| Usage/Application | To support beam or timber |
| Color | Silver |
| Diameter | 32,34 and 38mm |
| Material Grade | S235 |
| Product Type | Scaffolding Screw Jack |
| Surface Treatment | Zinc Plating |
| Packaging Type | Steel Pallet |
| Outer Tube Diameter | 32,34 and 38mm |
| Surface Finish | Silver Zinc Plating |
| Scaffolding Type | Supporting |
| Shape | Four Way Head |
| Brand | JRS |
Description
Four way head screw jack is used to support the steel or timber on the top of the scaffold. The thread along with the jack is cold formed which can supply high loading capacity.
Uses :
- To suppaort scaffold structure
- Safe & reliable adjustment of height
- Lock nut for adjustment
- Can be used with different pads
Product Features:
- Malleable and ductile
- Excellent Durability
- Rust free
- Dimensionally stable
Product Specifications:
- Tube Length :450, 500, 610, 700
- Size (mm) :32 , 34, 38
- Plate :150 X 150 X 5
- Nut :Casted, Forged
- Thread :4TPI
- Item Code: EFC-6005-16
- Production Capacity: 20000 piece per month
- Packaging Details: Packing in Steel Pallet or As per Customer Requirement
Questions
About this product
Can Four Way Head Screw Jack (S235) be made to my drawing?
Yes. We make to your exact specification. Send your drawing or sizes and we confirm what we can make.
How can I trace Four Way Head Screw Jack (S235)?
Each product carries a lot number, a month and year stamp and a hologram.
What should I send for a quote on Four Way Head Screw Jack (S235)?
Send the sizes or a drawing, the finish you need, the quantity and your destination port. Quantities and delivery are confirmed in your quote.
