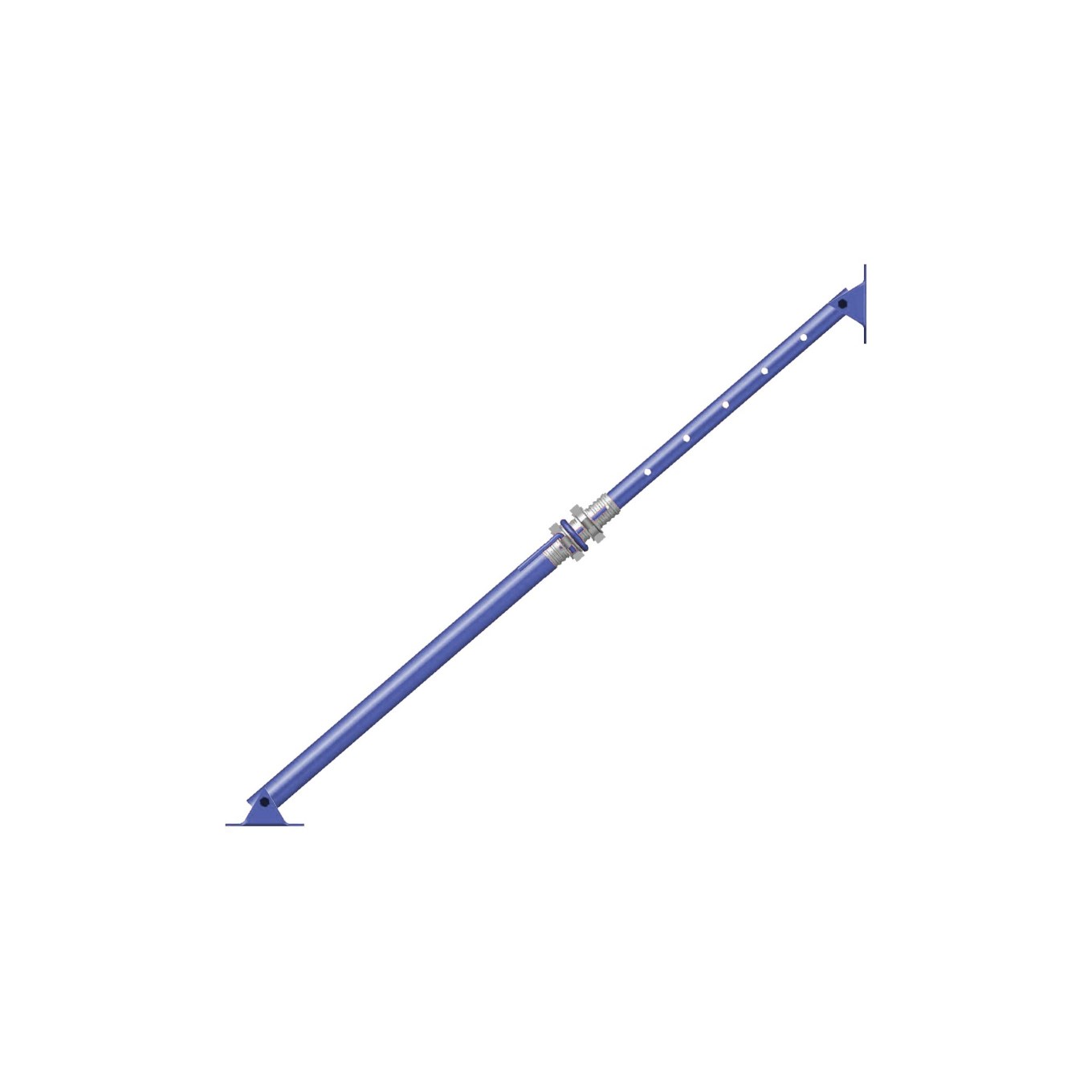

EN 1065 Push Pull Wall Props are suitable for all types of Wall shoring. They are practical, economical and resilient.It is widely used in different supporting areas, which can support timber and formwork, which is strong and reliable for exterior building construction. It can be adjusted to any length within its range, which is convenient for using.
Construction features: –
Tubes in steel grade Q235B, Q345B
Internal tube ø 40.0 mm / 48.3 mm / 60.3 mm
External tube ø 48.3mm / 56.0 mm / 76.0 mm.
Thickness of tube from 1.6 mm to 4.0 mm
Diameter of the pin 10, 12, 14 and 16 mm.
Plates are 100 X 100 X 4 mm, 120 x 120 x 5 mm & 150 x 150 x 8 mm
Surface Finish:Immersion Painting, Powder Coating, Electro Galvanized, Hot dip Galvanized
Note:
1) 1KN=102KG.
2) Load capacity based on a 2:1 factor of safety. Test results can be provided to clients in each lot.
3) Customization available.
| Size
(mm) |
Inner Tube
(mm) |
Outer Tube
(mm) |
Weight
(Kg) |
Load Capacity
(KN) |
| 1.6-2.9 | 48.3×2.0 | 56×2.0 | 10.00 | 1200 |
| 1.8-3.2 | 48.3×2.0 | 56×2.0 | 12.00 | 1000 |
| 1.8-3.2 | 48.3×2.0 | 60.3×2.0 | 13.00 | 1100 |
| 2.0-3.5 | 48.3×2.0 | 60.3×2.0 | 14.20 | 900 |
