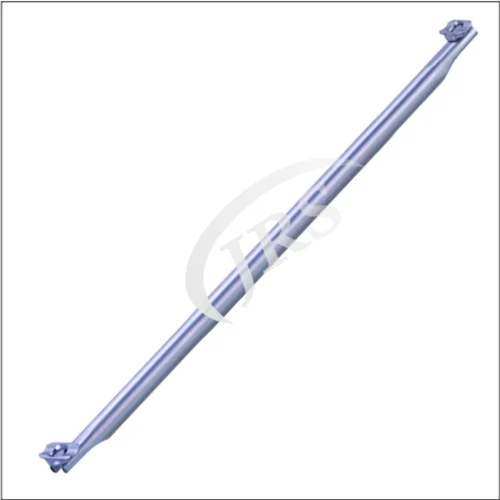

Cuplock Diagonal Braces

Search Product

Engineered for Safety

All products are manufactured to meet global safety and quality standards, ensuring reliable performance at any construction site.
Custom Fit Solutions

Available in a variety of sizes and configurations to suit different project requirements across industries.
Durability & Strength

Built from high-grade materials for excellent load-bearing capacity and long-term use under tough site conditions.

Product Details:

Minimum Order Quantity	1000 Piece
Material	Steel
Brand	JRS
Usage/Application	To give support to scaffolding structure
Product Type	Cuplock accessories
Diameter	48.3X2.5mm
Packaging Type	In steel pallets
Surface	Galvanized
Condition	New
Dimension	1.065-3.050 meter
Material Grade	ST-52
Color	Silver
Surface Treatment	HDG
Size	1-3 meter
Shape	Tube
Thickness	2.5mm
Weight	6.87-10.49 kg
Model Number	EFC-3004
Outer Diameter	48.3X2.5mm
Number Of Cups	1-4
Pipe Diameter	48.3X2.5mm
Pipe Standard	EN-74
Pipe Thickness	2.5mm
Surface Type	Hot dip galvanized

Specification :

Item Code	Tube Size	Size (Meter) Width x Height	Size (Inch) Width x Height	Material	Weight (Painted) (kg)
3004-152	48.3×2.5 mm	1.52×2.0	59.84×78.74	S235	7.5
3004-180	48.3×2.5 mm	1.80×2.0	70.86×78.74	S235	8.15
3004-213	48.3×2.5 mm	2.13×2.0	83.85×78.74	S235	8.44
3004-250	48.3×2.5 mm	2.50×2.0	98.42×78.74	S235	9.20
3004-274	48.3×2.5 mm	2.74×2.0	107.87×78.74	S235	9.70
3004-305	48.3×2.5 mm	3.05×2.0	120.07×78.74	S235	10.27
