It used for the lateral bracing of Ringlock scaffolding System. They can also be used as compression and tension members for cantilevers, transmitting loads back into the main scaffold structure.
Tube Diameter : 48.3 mm : Thickness : 2.3 to 3 mm : Material : Q235B & High Grade Steel : Customization Available.

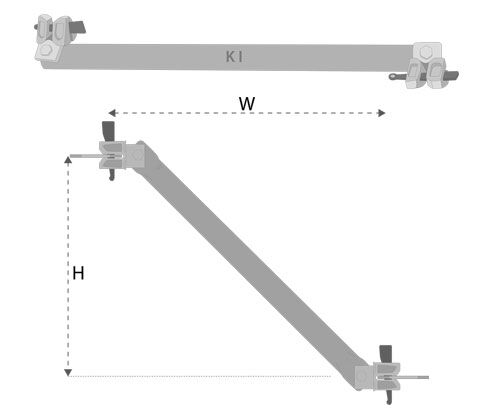

| Code | Product Name | Bay Length (MM) | Weight ( KG ) |
| RSD30 | Diagonal 3′ | 914×2000 | 7.30 |
| RSD36 | Diagonal 3’6″ | 1088×2000 | 7.80 |
| RSD40 | Diagonal 4′ | 1220×2000 | 8.30 |
| RSD43 | Diagonal 4’3″ | 1286×2000 | 8.40 |
| RSD50 | Diagonal 5′ | 1524×2000 | 8.70 |
| RSD52 | Diagonal 5’2″ | 1572×2000 | 8.90 |
| RSD60 | Diagonal 6′ | 1829×2000 | 9.50 |
| RSD69 | Diagonal 6’9″ | 2072×2000 | 9.75 |
| RSD70 | Diagonal 7′ | 2130×2000 | 9.80 |
| RSD80 | Diagonal 8′ | 2440×2000 | 10.60 |
| RSD86 | Diagonal 8’6″ | 2572×2000 | 10.30 |
| RSD10 | Diagonal 10′ | 3051×2000 | 12.20 |
| Weight | 7.30 kg |
|---|---|
| Code | RSD30, RSD36, RSD40, RSD43, RSD50, RSD52, RSD60, RSD69, RSD70, RSD80, RSD86, RSD10 |
